WLP Double shaft shredder

Throughput:1-30T/H
Discharge size:15-350mm

Product introduction

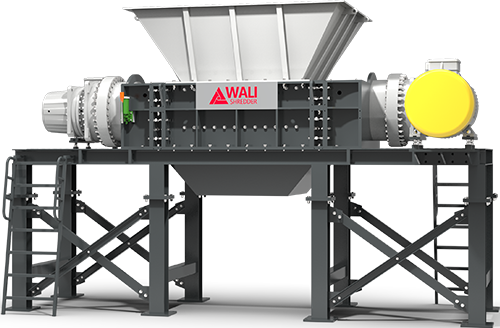

Double shaft shredder- WLP



WLP is a heavy-duty and robust double-shaft shredder mounted on dual rotars and reducers for high throughput capacity.

Compared with single-shaft shredder, WLP features lower speed, higher torque and high efficiency, and it is not equipped with a seive allowing materials to be discharged directly after input.

It is very ideal for shredding and tearing solid waste and bulky waste, such as furniture, electrical appliances, straws.

Therefore, it is commonly used in recycling production line as a pre shredder to optimally prepare for next process steps, can cater for a wide and diverse variety of material and customer requirements.

The highlights of the WLP-shredder

What Waste Can We Shred?

+ Plastic: Plastic lumps, plastic pallets, plastic drums, engineering plastics, etc.
+ Electrical appliances: Casing of TVs, monitors, microwave ovens, dishwashers, etc.
+ E-waste: Computer host casing, hard disk, optical drive, toner cartridge, battery, etc.
+ Pipe material: PVC, PE, PP and other pipes and urban water supply pipes.
+ Rubber: Waste tires and conveyor belts, etc.
+ Metal: Copper, aluminium, iron metal sheet, aluminium casting, other casting less than 5mm.
+ Wood: Planks, wooden pallets, branches, etc.
+ Straw: Straw, corn straw, bean straw, etc.







Crushing effect

Crushing cases

Which model suits your needs?

WLP-Model

Model Equipment dimension Crushing chamber dimension Cutter diameter×thickness Cutter quantity Rotate speed Motor power Equipment N.W. Capacity
Unit L×W×H mm mm mm Pcs R/min Kw T T
WLP710 3150*2150*2500 1000*690 φ330*30 34 13-20 30+30 Approx 4.5 Approx 2-3
WLP812 4100*2300*2800 1200*790 φ370*30/60 40/20 13-20 45+45 Approx 8 Approx 3-5
WLP912 4600*2600*2900 1200*980 φ480*30/40/50/60 40/30/24/20 10-20 55+55/75+75 Approx 9.5/11.6 Approx 5-8/6-9
WLP1016 5630*3160*3200 1600*1070 φ550*40/50/60 40/32/26 6-15 90+90/110+110 Approx 16 Approx 8-10/10-12
WLP1216 5800*3500*3500 1600*1200 φ590*40/50/60 40/32/26 6-15 132+132 Approx 24 Approx 12-18
WLP1220 6700*3700*3600 2100*1280 φ650*50/70/80 42/30/26 5-12 200+200 Approx 29 Approx 20-25
The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request.

Why Choose Us?

Outlined below are some key reasons to choose us.

Our Manufacturing Plant

Our factory is located in Maanshan, China. Maanshan was the first steel production base in China, supplying 90% of the country’s blades.

As a shredder manufacturer, we have a complete raw material supply chain and cost advantages.

We have a professional technical team and rich project experience, as well as can provide high quality products and one-stop recycling solutions for various solid waste projects.

FAQs

Got Questions? We’ve Got Answers

We are a professional equipment manufacturer with special sales and engineering teams. We have over 20 years of solid waste recycling project experience since our establishment in 2004.

Located in Maanshan, Anhui Province, our company is only a 30-minute drive from Nanjing Lukou Airport. If you plan to visit us, we’ll pick you up at the airport.

Before placing an order, our sales team will conduct detailed and in-depth communication with you to determine your specific requirements. We then recommend machine configurations based on your needs, ensuring that you buy the best machine for your business. We insist on providing the most competitive products when meeting the needs of our customers.

Yes, we support OEM and ODM, which includes customizing the appearance, color, configuration, even produce the complete machine according to your drawings and requirements.

We accept a minimum quantity of one and can customize it according to your requirements.

We employ a variety of large equipment, such as tempering furnaces and shot blasting machines, to ensure the strength and stability of the frame. To guarantee machine accuracy, we use five-axis machining centers and floor boring and milling equipment. Additionally, our machine processing, assembly, and quality inspection follow standardized processes, ensuring product quality is controlled throughout the production process.

Typically, we deliver goods within 30 days. If the machine is a customized product, it may take longer. However, the delivery time for such machines will not exceed 50 days.

We generally accept T/T and L/C payments, with a 30% deposit and 70% payment before delivery.

Due to the large volume of the equipment, we usually wrap the whole machine with plastic wrap, and wrap the foam around the corner of the machine, and then put the machine into the container and fix it with steel wire to prevent the machine from shifting or colliding during transportation. In addition, for a single piece of equipment, we can customize wooden boxes and pallets for customers to unload and transport.

Our warranty period for conventional machines is one year, not including the wear parts. Please confirm the warranty period with our sales team in advance. During the warranty period, we offer free replacement parts.

We offer remote assistance from our mechanical engineers to resolve minor issues that may arise during the use of our machines. This includes one-to-one guidance, with the option of sending text instructions or videos to help you solve the problem. If any parts need to be replaced during the warranty period, we will provide them free of charge. However, you may also purchase the parts locally to save time. If remote guidance is insufficient to address more serious problems, we will arrange for engineers to provide on-site service. In regions where we have agents, we will contact them directly to provide service.

We welcome you to arrange for relevant personnel to come to our company for on-site study, and we will provide specialized one-to-one guidance. However, if it is inconvenient for you to visit our company, we can also provide remote training options.

Certainly. Along with machine delivery, we typically provide various manuals, operating instructions, precautions, circuit diagrams, hydraulic diagrams, and other materials.

Our factory supports EXW, FOB, CRF, door to door, etc. We have professional freight forwarders who can arrange the transportation of goods.
