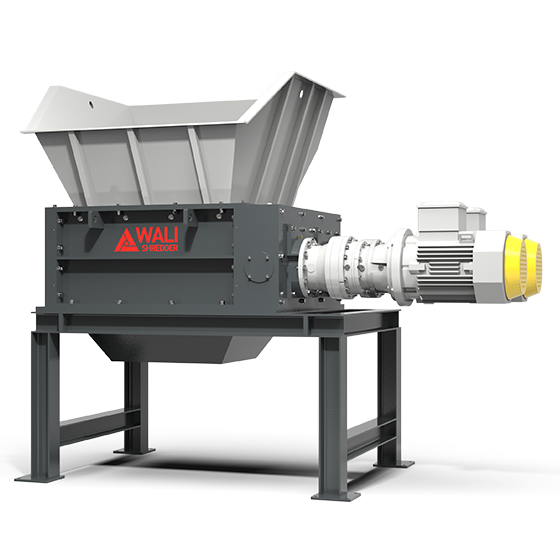

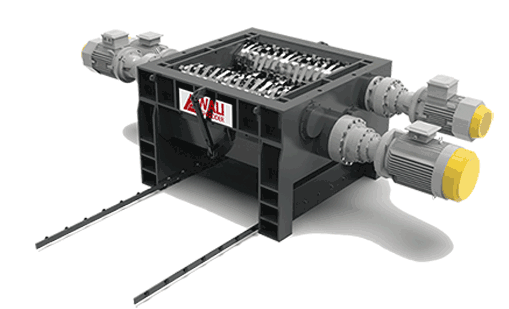

WLF is a device to reduce waste materials to homogeneous particle sizes whether as a stand-alone solution or as part of recycling system.

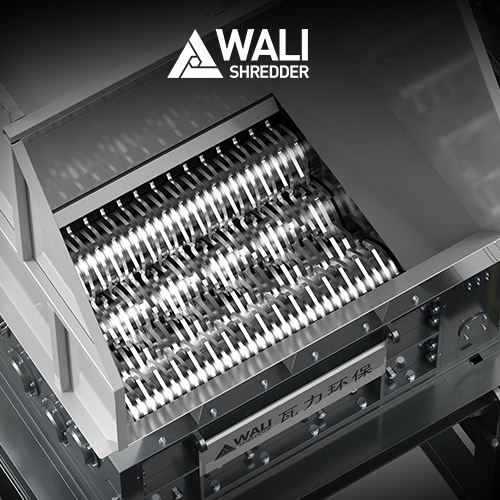

It combines the reliability and power of the double-shaft shredders with the possibility of controlling the output material size. Four-axis shredder can tear and shatter efficiently without auxiliary press mechanism and perfect for handling frame waste and tough material.

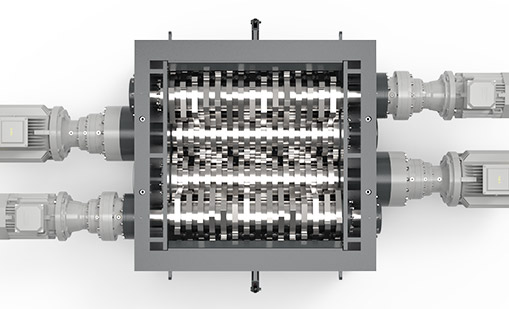

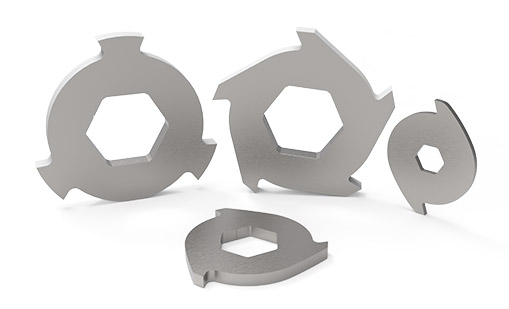

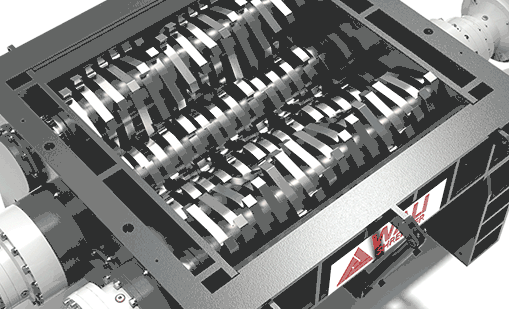

The the function of the two cutters above the four-shaft shredder is to clean the shafts below and at the same time provide a certain amount of shearing force.
The size of the output material is controlled by the screen. After the material is cut once, the material with a smaller particle size than the hole of the screen is discharged from the lower part of the box under the action of gravity and squeezing pressure,while the material with a larger size than the hole of the screen is guided by the main cutters and the secondary cutters to return to the inner surface of the screen for the second cutting, and so on until the material can be discharged from the hole of the screen.
The four-axis shredder is equipped with a sieve at the bottom of the crushing chamber to circulate the material until the required particle size is reached.It is also convenient and simple to disassemble based on the needs.
+ Barrel products: plastic barrels, metal barrels, paint barrels, IBC barrels, trash cans, etc.
+Solid waste: bulky waste, domestic waste, industrial waste, garden waste, etc.
+Plastic products: plastic pallets, plastic bottles, plastic frames, plastic blocks, plastic containers, etc.

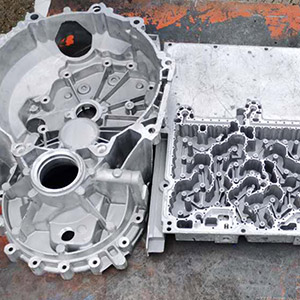

+Metal products: aluminum alloy, waste aluminum castings, oil filters, car shells, cans, etc.
+Paper: newspapers, cardboard, corrugated paper, copy paper, etc.
+Electronic appliances: refrigerators, circuit boards, TV shells, small appliance shells, CDs, etc.
+Glass products: glass wool, glasses, glass bottles, etc.
+Paper mill waste: paper mill light residue, paper mill rope, paper mill scraps, etc.
Model | Equipment dimension | Crushing chamber dimension | Cutter diameter×thickness | Cutter quantity | Rotate speed | Motor power | Equipment N.W. | Capacity |
---|---|---|---|---|---|---|---|---|
Unit | L×W×H mm | mm | mm | Pcs | r/min | Kw | Kg | Kg |
WLF800 | 2361*1290*1932 | 817*800 | φ251x18.5 | 42 | 14 | 11*2 | approx2600 | approx 300-800 |
WLF1012 | 2875*1597*3405 | 1187*1000 | φ320 | 40 | 15-16 | 30*2 | approx6300 | approx500-1500 |
WLF1213 | 4196*1640*1124 | 1201*1300 | φ430 | 30 | 15-16 | 30*2 | approx6900 | approx1000-2500 |
WLF1213B | 3840*1640*1953 | 1201*1300 | φ430 | 30 | 16-18 | 45*2 | approx8200 | approx1500-3000 |
The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request. |
Outlined below are some key reasons to choose us.
Our factory is located in Maanshan, China. Maanshan was the first steel production base in China, supplying 90% of the country’s blades.
As a shredder manufacturer, we have a complete raw material supply chain and cost advantages.
We have a professional technical team and rich project experience, as well as can provide high quality products and one-stop recycling solutions for various solid waste projects.
Got Questions? We’ve Got Answers
We are a professional equipment manufacturer with special sales and engineering teams. We have over 20 years of solid waste recycling project experience since our establishment in 2004.
Located in Maanshan, Anhui Province, our company is only a 30-minute drive from Nanjing Lukou Airport. If you plan to visit us, we’ll pick you up at the airport.
Before placing an order, our sales team will conduct detailed and in-depth communication with you to determine your specific requirements. We then recommend machine configurations based on your needs, ensuring that you buy the best machine for your business. We insist on providing the most competitive products when meeting the needs of our customers.
Yes, we support OEM and ODM, which includes customizing the appearance, color, configuration, even produce the complete machine according to your drawings and requirements. payment options.
We accept a minimum quantity of one and can customize it according to your requirements.
We employ a variety of large equipment, such as tempering furnaces and shot blasting machines, to ensure the strength and stability of the frame. To guarantee machine accuracy, we use five-axis machining centers and floor boring and milling equipment. Additionally, our machine processing, assembly, and quality inspection follow standardized processes, ensuring product quality is controlled throughout the production process.
Typically, we deliver goods within 30 days. If the machine is a customized product, it may take longer. However, the delivery time for such machines will not exceed 50 days.
We generally accept T/T and L/C payments, with a 30% deposit and 70% payment before delivery.
Due to the large volume of the equipment, we usually wrap the whole machine with plastic wrap, and wrap the foam around the corner of the machine, and then put the machine into the container and fix it with steel wire to prevent the machine from shifting or colliding during transportation. In addition, for a single piece of equipment, we can customize wooden boxes and pallets for customers to unload and transport.
Our warranty period for conventional machines is one year, not including the wear parts. Please confirm the warranty period with our sales team in advance. During the warranty period, we offer free replacement parts.
We offer remote assistance from our mechanical engineers to resolve minor issues that may arise during the use of our machines. This includes one-to-one guidance, with the option of sending text instructions or videos to help you solve the problem. If any parts need to be replaced during the warranty period, we will provide them free of charge. However, you may also purchase the parts locally to save time. If remote guidance is insufficient to address more serious problems, we will arrange for engineers to provide on-site service. In regions where we have agents, we will contact them directly to provide service.
We welcome you to arrange for relevant personnel to come to our company for on-site study, and we will provide specialized one-to-one guidance. However, if it is inconvenient for you to visit our company, we can also provide remote training options.
Certainly. Along with machine delivery, we typically provide various manuals, operating instructions, precautions, circuit diagrams, hydraulic diagrams, and other materials.
