WLDH Single Shaft Shredder

Throughput:1-8T/H Larger cutter box, handles bigger materials
Discharge size:30-100mm(Customizable)

Product introduction

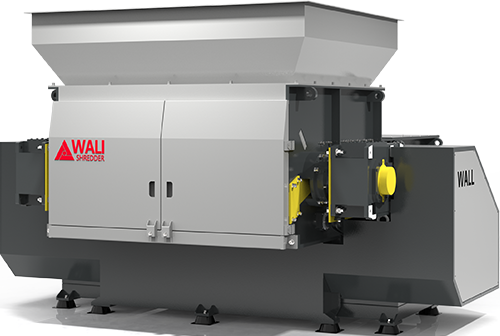

Single shaft shredder – WLDH

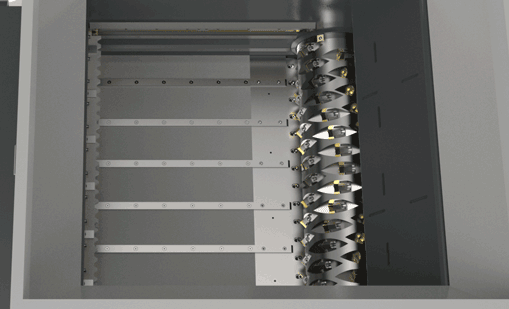

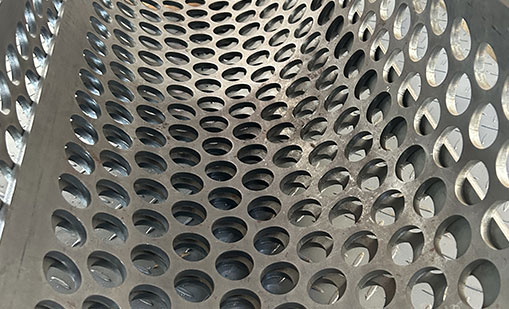

The WLDH Single-axis pulverizer is a heavy-duty dust reduction machine with a single-axis rotating blade, horizontal hydraulic push plate and bottom screen to ensure that the material is crushed to the desired size.

High power is ideal for handling hard and corrosion-resistant materials.

These machines can crush plastic blocks, pipes, auto parts, blow molding materials such as PET bottles, PE/PP bottles, cans, buckets, paper products, cardboard and light metals.

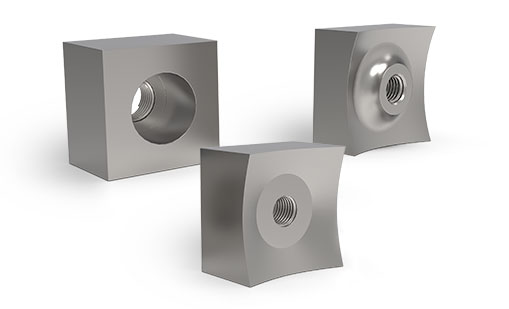

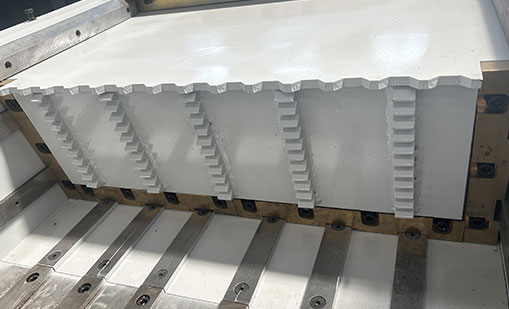

The highlights of the WLDH-shredder

What Waste Can We Shred?

 + Plastics: Mouldings, purging/lump, profiles, films, etc.

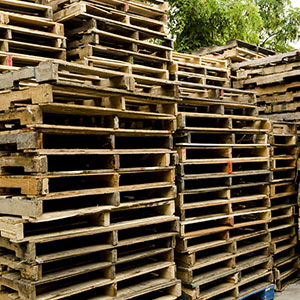

+ Timber/Wood: Pallets, joiners waste, green waste, etc.
+ Paper & Cardboard: Confidential documents, production Waste, packaging materials, etc.
+ Copper Cable: Household, telecoms, and industrial cables, etc.
+ Aluminum: Used beverage cans (UBCs), swarf, cables, etc.
+Textiles: Carpet (Rols & Tiles), garments, etc.
+ Security Destruction: Counterfeit items, faulty goods, out of date stock, etc.
+ Foam: Production waste, etc.
+ Mixed Household & Commercial Waste: RDF/SRF Production.

Crushing effect

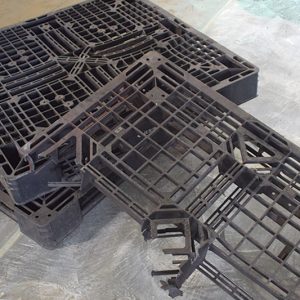

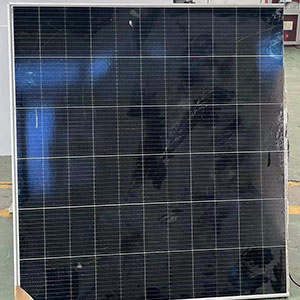

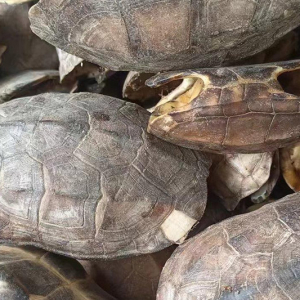

Crushing cases

Which model suits your needs?

WLDH-Model

Item No. Equipment dimension Crushing chamber dimension Cutter roll length Cutter roll diameter Rotor blades quantity Fixed blades quantity Sieve diameter Rotate speed Motor power Equipment N.W. Cpacity
Unit L×W×H mm mm mm mm pcs pcs mm r/min kw T T
DH1500 3700*2940*2520 1500*1000 1500 φ480 84+6 3+3 φ40 80 90+7.5 approx 11.2 approx 1.3-1.5
DH2000 3710*4150*2530 2000*1000 2000 φ480 95+6 4+4 φ40 80 2x75+7.5 approx 14.2 approx 2-2.5
DH2200 3710*3630*2720 2200*1000 2200 φ480 105+4 4+4 φ40 80 110+7.5 approx 11.5 approx 1.8-2
The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request.

Why Choose Us?

Outlined below are some key reasons to choose us.

Our Manufacturing Plant

Our factory is located in Maanshan, China.

Maanshan was the first steel production base in China, supplying 90% of the country’s blades.

As a shredder manufacturer, we have a complete raw material supply chain and cost advantages.

We have a professional technical team and rich project experience, as well as can provide high quality products and one-stop recycling solutions for various solid waste projects.

FAQs

Got Questions? We’ve Got Answers

We are a professional equipment manufacturer with special sales and engineering teams. We have over 20 years of solid waste recycling project experience since our establishment in 2004.

Located in Maanshan, Anhui Province, our company is only a 30-minute drive from Nanjing Lukou Airport. If you plan to visit us, we’ll pick you up at the airport.

Before placing an order, our sales team will conduct detailed and in-depth communication with you to determine your specific requirements. We then recommend machine configurations based on your needs, ensuring that you buy the best machine for your business. We insist on providing the most competitive products when meeting the needs of our customers.

Yes, we support OEM and ODM, which includes customizing the appearance, color, configuration, even produce the complete machine according to your drawings and requirements.

We accept a minimum quantity of one and can customize it according to your requirements.

We employ a variety of large equipment, such as tempering furnaces and shot blasting machines, to ensure the strength and stability of the frame. To guarantee machine accuracy, we use five-axis machining centers and floor boring and milling equipment. Additionally, our machine processing, assembly, and quality inspection follow standardized processes, ensuring product quality is controlled throughout the production process.

Typically, we deliver goods within 30 days. If the machine is a customized product, it may take longer. However, the delivery time for such machines will not exceed 50 days.

We generally accept T/T and L/C payments, with a 30% deposit and 70% payment before delivery.

Due to the large volume of the equipment, we usually wrap the whole machine with plastic wrap, and wrap the foam around the corner of the machine, and then put the machine into the container and fix it with steel wire to prevent the machine from shifting or colliding during transportation. In addition, for a single piece of equipment, we can customize wooden boxes and pallets for customers to unload and transport.

Our warranty period for conventional machines is one year, not including the wear parts. Please confirm the warranty period with our sales team in advance. During the warranty period, we offer free replacement parts.

We offer remote assistance from our mechanical engineers to resolve minor issues that may arise during the use of our machines. This includes one-to-one guidance, with the option of sending text instructions or videos to help you solve the problem. If any parts need to be replaced during the warranty period, we will provide them free of charge. However, you may also purchase the parts locally to save time. If remote guidance is insufficient to address more serious problems, we will arrange for engineers to provide on-site service. In regions where we have agents, we will contact them directly to provide service.

We welcome you to arrange for relevant personnel to come to our company for on-site study, and we will provide specialized one-to-one guidance. However, if it is inconvenient for you to visit our company, we can also provide remote training options.

Certainly. Along with machine delivery, we typically provide various manuals, operating instructions, precautions, circuit diagrams, hydraulic diagrams, and other materials.

Our factory supports EXW, FOB, CRF, door to door, etc. We have professional freight forwarders who can arrange the transportation of goods.
