WLD Single shaft shredder is a machine with one motor and one rotor.
It can handle a wide range of materials, such as plastic lump and jection, wood, cloth and fabric, etc.
Campare to the double shaft shredder, it is equipped with a seive, which can control the output particle size.
The output products after shredding can be sold as it or be sent for next processing step.
Single shaft shredder can work as a stand-alone or be used in complete recycling line.

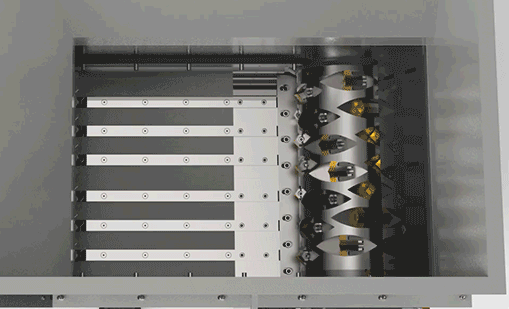

V arrangement rotor with blades mounted on blade holders can reduce the feeding resistance when crushing materials and cutter is made of wear and corrosion resistant alloy steel. Blades can be adjusted for multiple times,which maximizes the use of blade.
It is a special design of single shaft shredder, and we can control the output particle size by choosing desired screen to fit various needs. Screens are designed to be easy to remove, clean and replace, and a single machine can be configured with screens of different hole sizes.
WLD series built-in horizontal hydraulic push box. Segmented shredding chamber floor with brass guides is more wear-resistant and can keep smooth pushing.A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.
Wali single shaft shredder set safety current, when the material is difficult to tear, the instantaneous current will exceed the safety current, the push box will back, the knife shaft will reverse. Thus protect the motor from being damaged.
The main electrical components of dual shaft shredder are trusted brands such as Siemens and Schneider. PLC controlling system can realize real-time monitoring, abnormal alarm, remote diagnosis and data analysis.
With a rational design, single shaft shredders are simple to operate and maintain, making it easy for users to master their operation and maintenance.

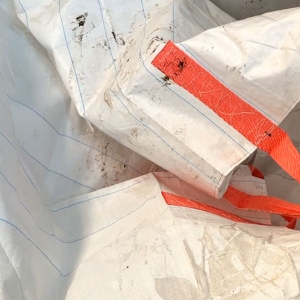

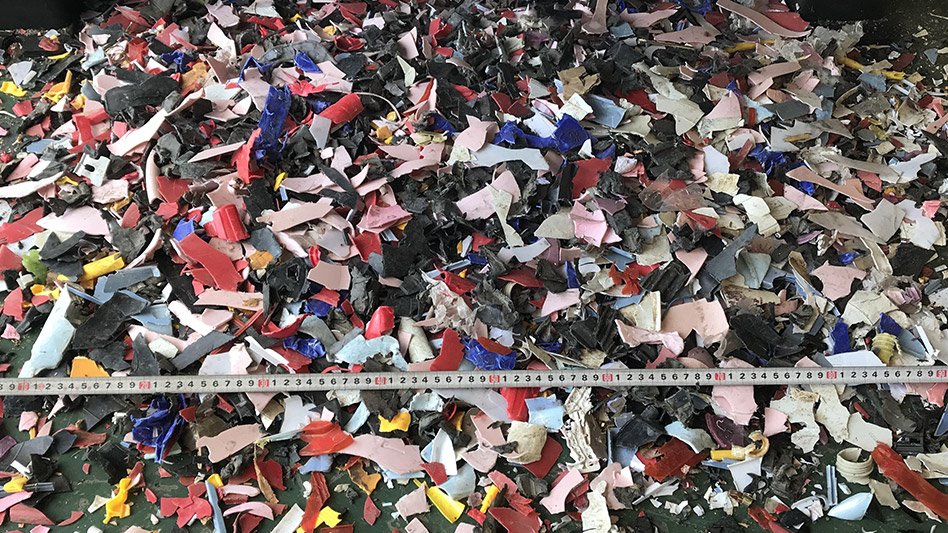

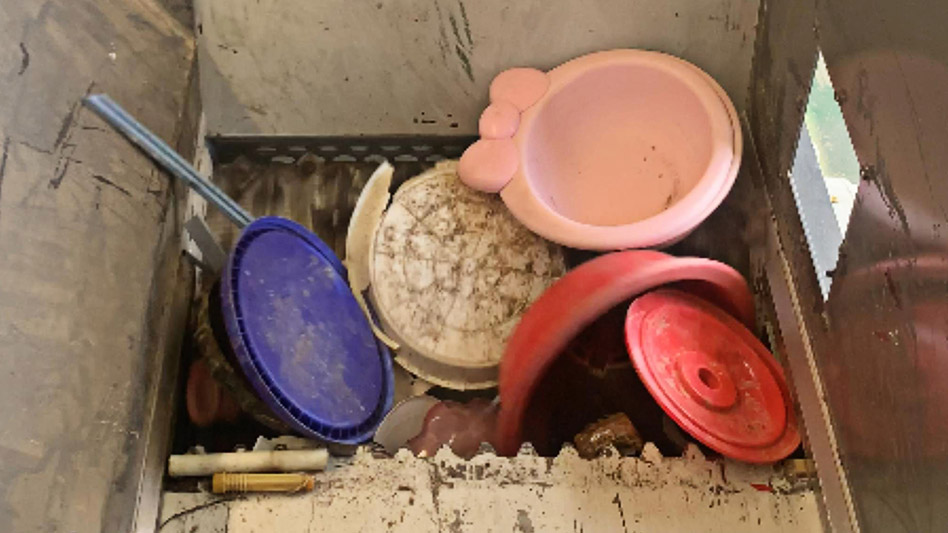

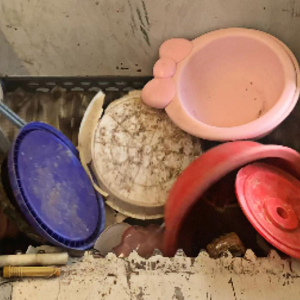

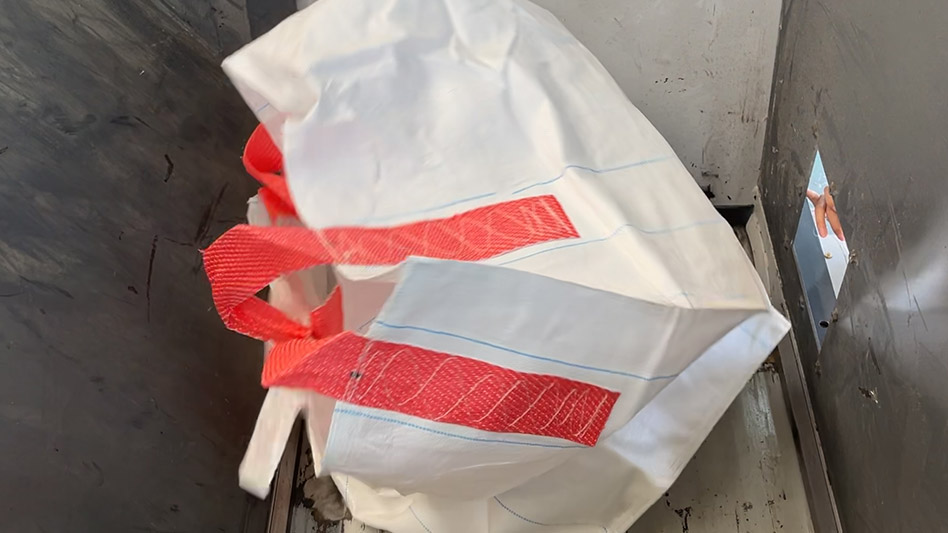

+ Plastic: General purpose plastics such as injection molding, extrusion, blown film etc.

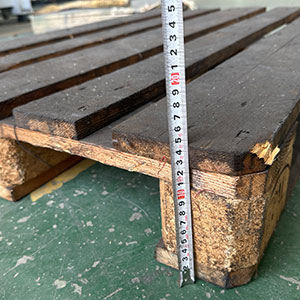

+ Timber: Wood pallet, Wood scraps, etc.
+ Paper: Document paper, wrapping paper, cardboard, etc.

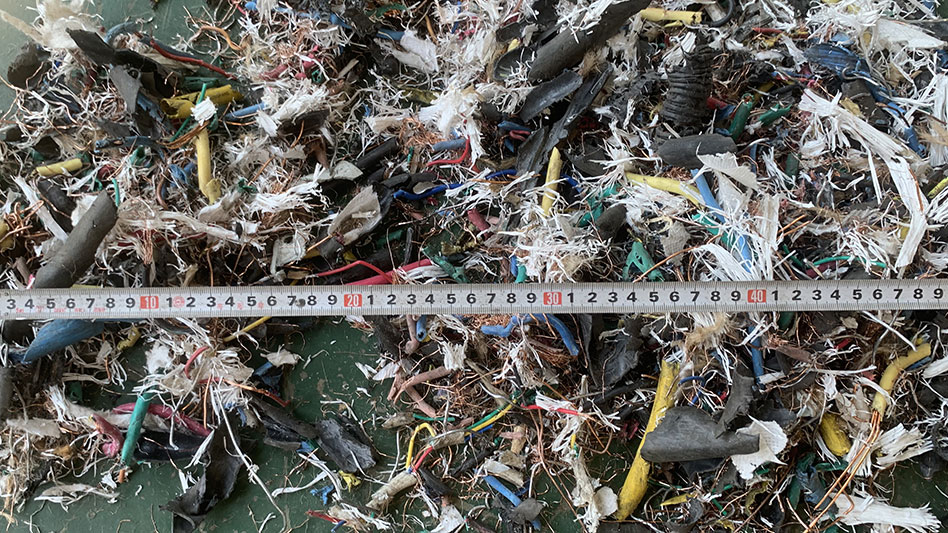

+ Cable: Copper core, aluminum core cable and composite cable, etc.

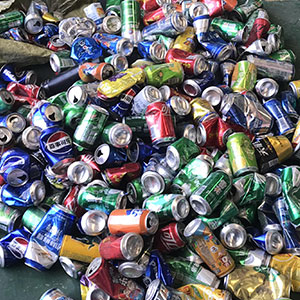

+ Aluminum: Zip-top can, aluminum scrap, etc.

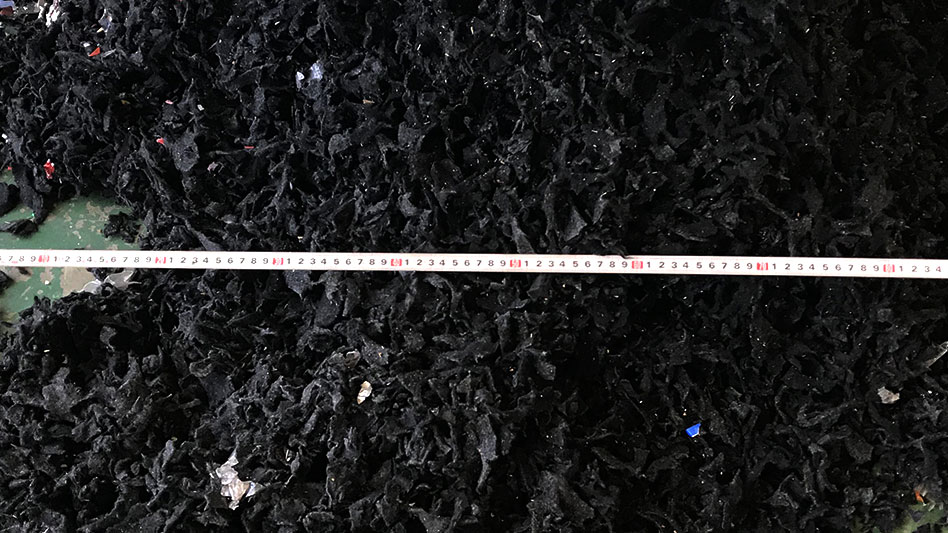

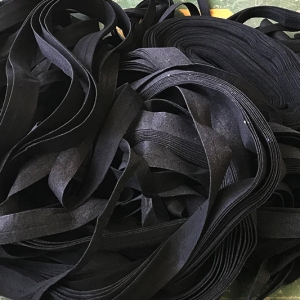

+ Chemical fiber: Carpets, labor insurance clothes, etc.
+ Sponge: Industrial waste, etc.
+ Composite materials: Fiberglass products, automobile windshield, sealing tape, etc.
+ Safe destruction product: Imitation products(fake products), substandard products, expired items, etc.
Item No. | Equipment dimension | Crushing chamber dimension | Cutter roll length | Cutter roll diameter | Rotor blades quantity | Fixed blades quantity | Sieve diameter | Rotate speed | Motor power | Equipment N.W. | Cpacity |
Unit | L×W×H mm | mm | mm | mm | Pcs | Pcs | mm | r/min | KW | T | T |
WLD600 | 1790*1400*1760 | 600*500 | 600 | φ220 | 23+4 | 2+2 | φ40-100 | 80 | 18.5+2.25 | approx 1.8 | approx 0.2-0.5 |
WLD800 | 2760*1790*1870 | 800*780 | 800 | φ400 | 35+4 | 2+2 | φ40-100 | 80 | 45+3.75 | approx 4.2 | approx 0.6-0.8 |
WLD1000 | 2780*2265*2100 | 1000*780 | 1000 | φ400 | 45+4 | 2+2 | φ40-100 | 80 | 55+3.75 | approx 4.9 | approx 0.8-1 |
WLD1200 | 2760*2500*2020 | 1200*780 | 1200 | φ400 | 55+4 | 3+3 | φ40-100 | 80 | 75+5.5 | approx 5.2 | approx 1-1.2 |
WLD1400 | 2780*2730*2150 | 1400*780 | 1400 | φ400 | 78+4 | 3+3 | φ40-100 | 80 | 90+5.5 | approx 7.4 | approx 1.2-1.5 |
The above shredder is our standard configuration. For different raw materials to be shredded, the configuration might be different. Please feel free to contact us for detailed information or special request. |
Outlined below are some key reasons to choose us.
Our factory is located in Maanshan, China.
Maanshan was the first steel production base in China, supplying 90% of the country’s blades.
As a shredder manufacturer, we have a complete raw material supply chain and cost advantages.
We have a professional technical team and rich project experience, as well as can provide high quality products and one-stop recycling solutions for various solid waste projects.
Got Questions? We’ve Got Answers
We are a professional equipment manufacturer with special sales and engineering teams. We have over 20 years of solid waste recycling project experience since our establishment in 2004.
Located in Maanshan, Anhui Province, our company is only a 30-minute drive from Nanjing Lukou Airport. If you plan to visit us, we’ll pick you up at the airport.
Before placing an order, our sales team will conduct detailed and in-depth communication with you to determine your specific requirements. We then recommend machine configurations based on your needs, ensuring that you buy the best machine for your business. We insist on providing the most competitive products when meeting the needs of our customers.
Yes, we support OEM and ODM, which includes customizing the appearance, color, configuration, even produce the complete machine according to your drawings and requirements.
We accept a minimum quantity of one and can customize it according to your requirements.
We employ a variety of large equipment, such as tempering furnaces and shot blasting machines, to ensure the strength and stability of the frame. To guarantee machine accuracy, we use five-axis machining centers and floor boring and milling equipment. Additionally, our machine processing, assembly, and quality inspection follow standardized processes, ensuring product quality is controlled throughout the production process.
Typically, we deliver goods within 30 days. If the machine is a customized product, it may take longer. However, the delivery time for such machines will not exceed 50 days.
We generally accept T/T and L/C payments, with a 30% deposit and 70% payment before delivery.
Due to the large volume of the equipment, we usually wrap the whole machine with plastic wrap, and wrap the foam around the corner of the machine, and then put the machine into the container and fix it with steel wire to prevent the machine from shifting or colliding during transportation. In addition, for a single piece of equipment, we can customize wooden boxes and pallets for customers to unload and transport.
Our warranty period for conventional machines is one year, not including the wear parts. Please confirm the warranty period with our sales team in advance. During the warranty period, we offer free replacement parts.
We offer remote assistance from our mechanical engineers to resolve minor issues that may arise during the use of our machines. This includes one-to-one guidance, with the option of sending text instructions or videos to help you solve the problem. If any parts need to be replaced during the warranty period, we will provide them free of charge. However, you may also purchase the parts locally to save time. If remote guidance is insufficient to address more serious problems, we will arrange for engineers to provide on-site service. In regions where we have agents, we will contact them directly to provide service.
We welcome you to arrange for relevant personnel to come to our company for on-site study, and we will provide specialized one-to-one guidance. However, if it is inconvenient for you to visit our company, we can also provide remote training options.
Certainly. Along with machine delivery, we typically provide various manuals, operating instructions, precautions, circuit diagrams, hydraulic diagrams, and other materials.
Our factory supports EXW, FOB, CRF, door to door, etc. We have professional freight forwarders who can arrange the transportation of goods.
