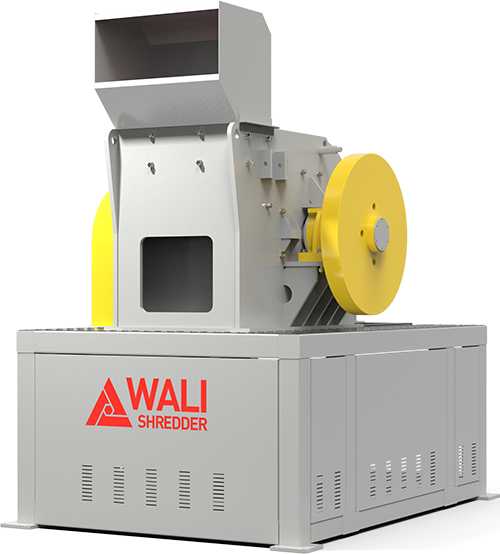

The hammer mill is an efficient device for crushing solid and hard materials with the aim of reducing size or separating metals and substances to obtain high-density, high-purity products. The rotor part of the WALI hammer mill can be installed with a blade or a hammer head. By swinging the blade and the hammer head on the material, the material after feeding can be effectively crushed at high speed in the crushing chamber.
There is a screen under the bottom of the machine that can control output particle size.
Hammer mill is commonly applied for a wide variety of materials, such as glass, lithium battery, scrap metals, electronic waste, household appliance, etc.

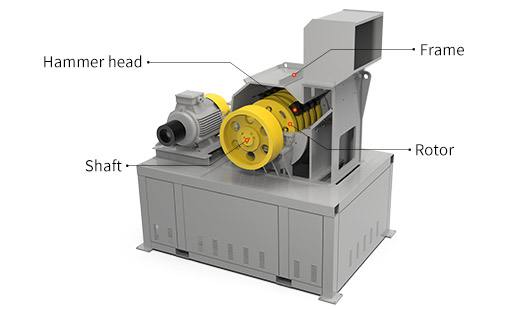

The rotor part of the machine can be installed with a rotary hammer or knife. The main components of this machine are mainly made of high alloy materials with high bearing capacity and strong stability. Making machines more wear-resistant, impact-resistant and robust and reliable, as well as spawning a long life.

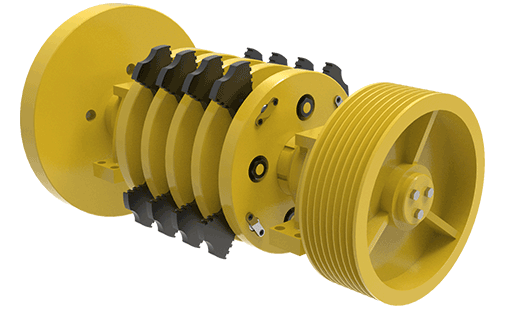

The rotor consists of bearing, metal round plate, shaft spins and hammers or knives.

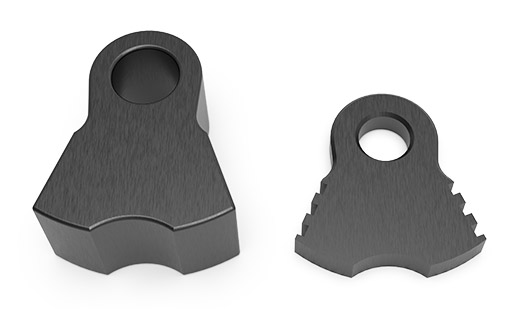

The hammers mounted on the rotor can be shaped and sized based on requirements.

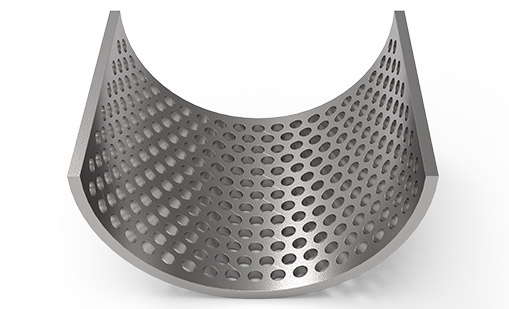

Equipped with a screen, we can control output size by choosing the desired screen to fit various needs. And the screen is designed to be easy to move, and clean and replace. requirements.
Sealing system offers stable and safe sealing under challenging conditions,
enhancing the system’s resistant to corrosive and making it suitable for harsh environment.

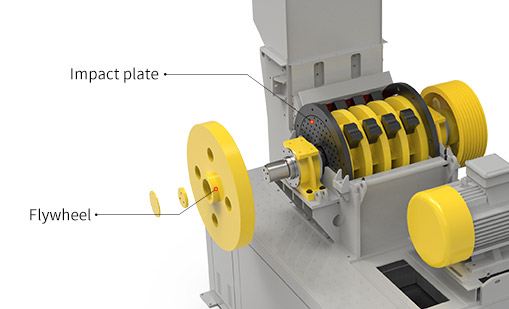

The flywheel is mounted on the side of bearing and the impact plate is installed in the crushing chamber. These special designs ensure the smooth operation of machine and effectively reduce the impact on the motor during the crushing.

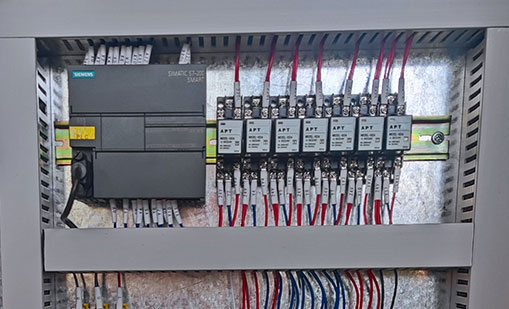

The main electrical components of Hammer mill are trusted brands such as Siemens and Schneider. PLC controlling system can realize real-time monitoring, abnormal alarm, remote diagnosis and data analysis.
+ Scrap metal: scrap ferrous, scrap aluminum, mixed metal, copper coils, copper windings, steel, UBC, metal sheet, etc.

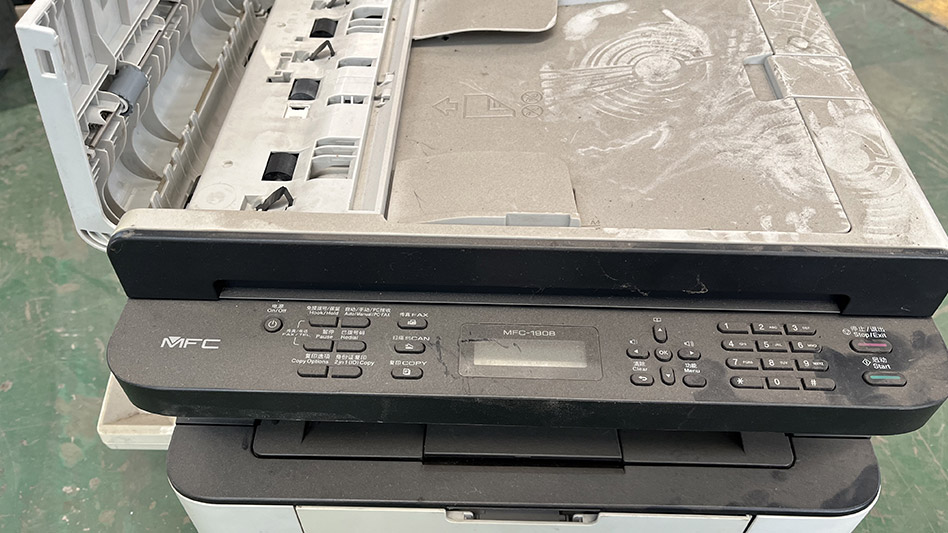

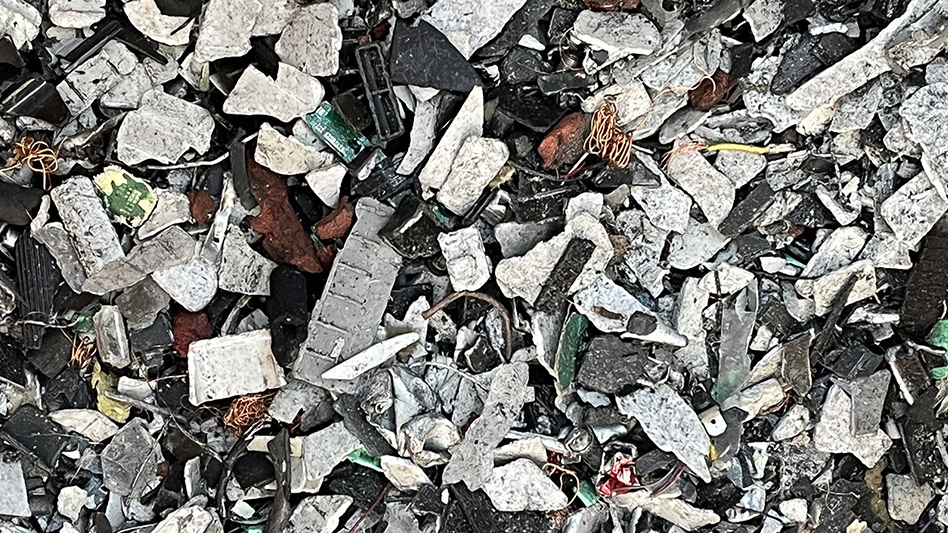

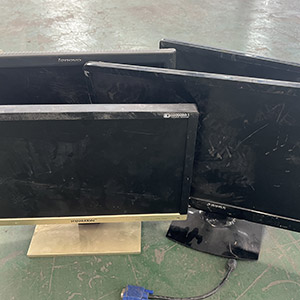

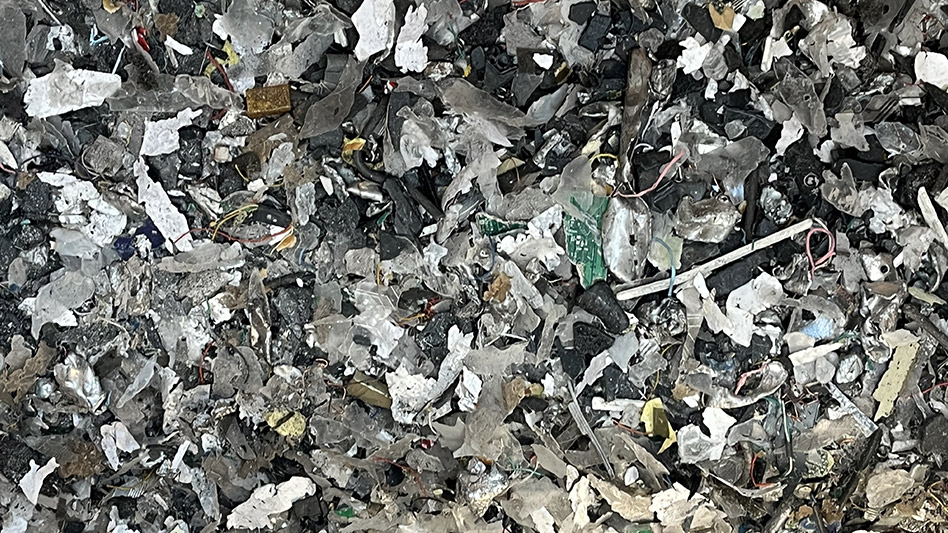

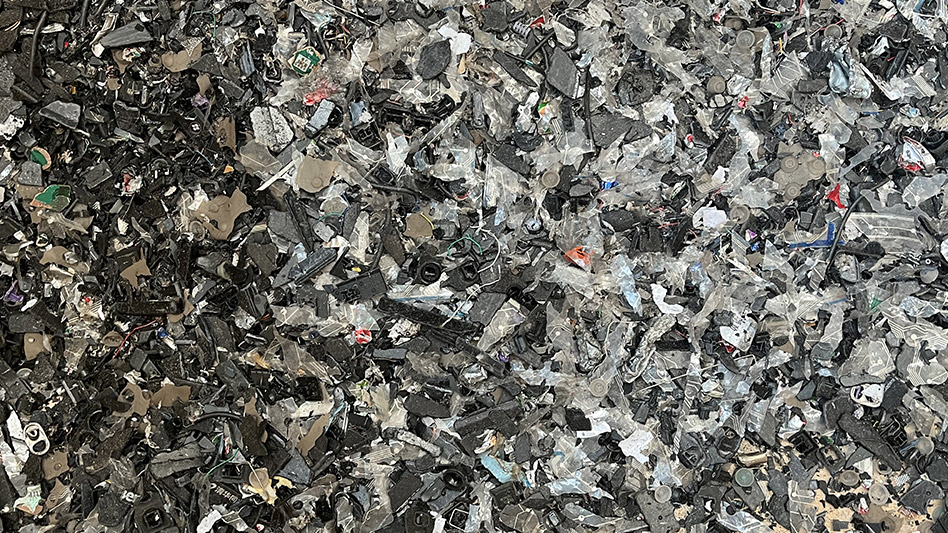

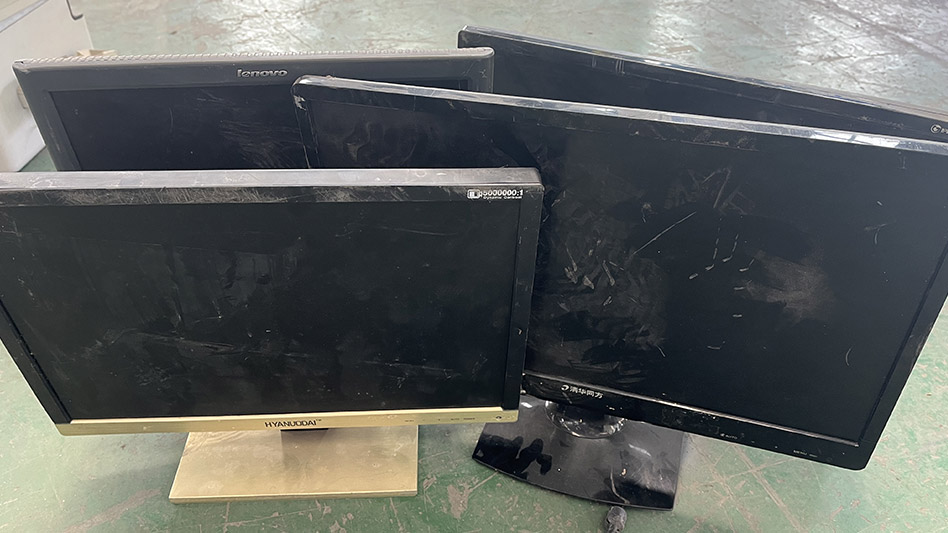

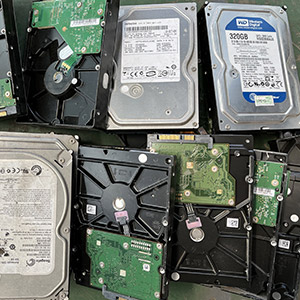

+ E-waste: radiators, electric motors, hydraulic materials, transformer, alternators, electric cables, small household appliances, etc.
+ Scrap car: crankcase, car control units, batteries and accumulators, demolition vehicles, automotive spark plug, etc.
Model | Power range | Hammer weight | Rotor | Sieve hole diameter | Capacity |
Unit | kw | T | rpm/min | mm | t/h |
HM45 | 37/55 | 4.8 | 540 | 20-100 | 0.3-0.5 |
HM60 | 75-90 | 5.4 | 540 | 20-100 | 0.5-1 |
HM90 | 90-132 | 5.8 | 540 | 20-100 | 1-2 |
HM200 | 200 | 20 | 740 | 20-100 | 3-5 |
HM315 | 315 | 26 | 740 | 20-100 | 6-7 |
HM450 | 450 | 30 | 740 | 20-100 | 10-12 |
Outlined below are some key reasons to choose us.
Our factory is located in Maanshan, China. Maanshan was the first steel production base in China, supplying 90% of the country’s blades. As a shredder manufacturer, we have a complete raw material supply chain and cost advantages.
We have a professional technical team and rich project experience, can provide high quality products and one-stop recycling solutions for various solid waste projects.
Got Questions? We’ve Got Answers
We are a professional equipment manufacturer with special sales and engineering teams. We have over 20 years of solid waste recycling project experience since our establishment in 2004.
Located in Maanshan, Anhui Province, our company is only a 30-minute drive from Nanjing Lukou Airport. If you plan to visit us, we’ll pick you up at the airport.
Before placing an order, our sales team will conduct detailed and in-depth communication with you to determine your specific requirements. We then recommend machine configurations based on your needs, ensuring that you buy the best machine for your business. We insist on providing the most competitive products when meeting the needs of our customers.
Yes, we support OEM and ODM, which includes customizing the appearance, color, configuration, even produce the complete machine according to your drawings and requirements.
We accept a minimum quantity of one and can customize it according to your requirements.
We employ a variety of large equipment, such as tempering furnaces and shot blasting machines, to ensure the strength and stability of the frame. To guarantee machine accuracy, we use five-axis machining centers and floor boring and milling equipment. Additionally, our machine processing, assembly, and quality inspection follow standardized processes, ensuring product quality is controlled throughout the production process.
Typically, we deliver goods within 30 days. If the machine is a customized product, it may take longer. However, the delivery time for such machines will not exceed 50 days.
We generally accept T/T and L/C payments, with a 30% deposit and 70% payment before delivery.
Due to the large volume of the equipment, we usually wrap the whole machine with plastic wrap, and wrap the foam around the corner of the machine, and then put the machine into the container and fix it with steel wire to prevent the machine from shifting or colliding during transportation. In addition, for a single piece of equipment, we can customize wooden boxes and pallets for customers to unload and transport.
Our warranty period for conventional machines is one year, not including the wear parts. Please confirm the warranty period with our sales team in advance. During the warranty period, we offer free replacement parts.
We offer remote assistance from our mechanical engineers to resolve minor issues that may arise during the use of our machines. This includes one-to-one guidance, with the option of sending text instructions or videos to help you solve the problem. If any parts need to be replaced during the warranty period, we will provide them free of charge. However, you may also purchase the parts locally to save time. If remote guidance is insufficient to address more serious problems, we will arrange for engineers to provide on-site service. In regions where we have agents, we will contact them directly to provide service.
We welcome you to arrange for relevant personnel to come to our company for on-site study, and we will provide specialized one-to-one guidance. However, if it is inconvenient for you to visit our company, we can also provide remote training options.
Certainly. Along with machine delivery, we typically provide various manuals, operating instructions, precautions, circuit diagrams, hydraulic diagrams, and other materials.
Our factory supports EXW, FOB, CRF, door to door, etc. We have professional freight forwarders who can arrange the transportation of goods.
