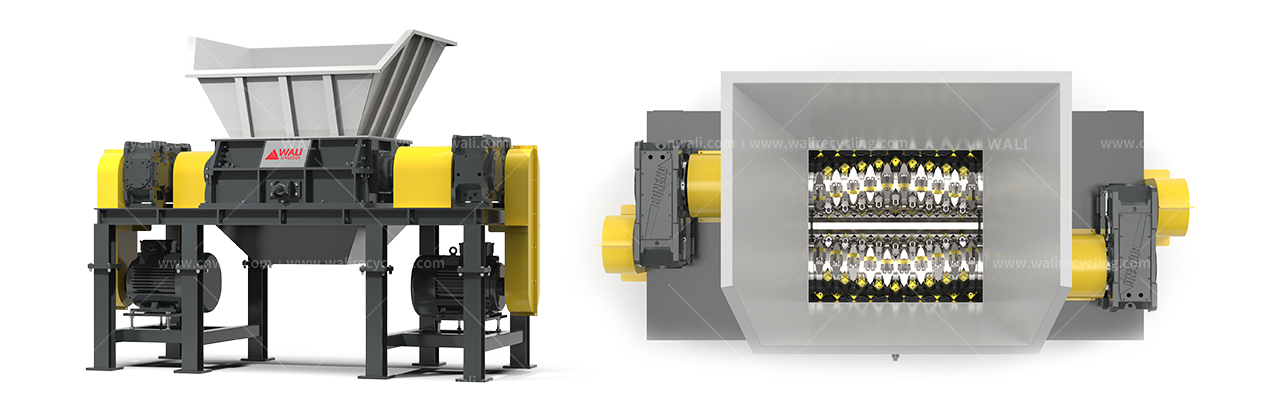

WALI G-series Double Shaft Shredder

Einleitung

The dual-roller shredder is a highly efficient dual-shaft crushing equipment widely used for the shredding and recycling of waste soft materials.

The WALI dual-roller shredder innovatively integrates the roller design and discharge particle size control technology of single-shaft shredders, equipped with two independently driven cutter rollers and a replaceable screen system. It combines the advantages of low-speed high torque and precise control of discharge particle size, making it particularly suitable for processing soft solid waste such as waste fabric, Film, and clothing.

By adjusting the roller gap, optimizing cutter parameters, and regulating rotational speed, it can meet diverse crushing requirements. This equipment, known for its efficiency, flexibility, and stability, is a crucial asset in the field of solid waste resource recovery.

Features

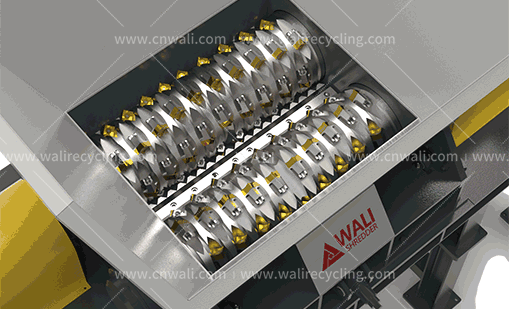

1. Two rollers

Two parallel rollers are used, with blades on each roller arranged in a spiral or staggered pattern, efficiently shreding and breaking down various materials.

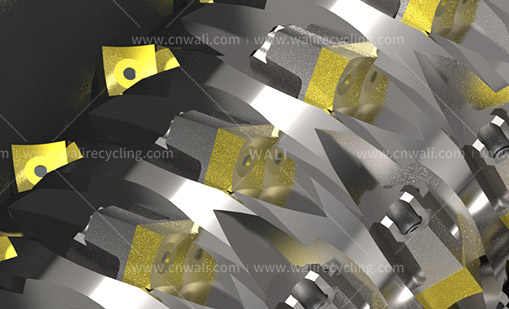

2. Blade

Die rotierende Welle ist in V-Form angeordnet, and the DC53 blade is installed on the knife holder, die auf den Rotor geschweißt ist. Diese Konstruktion kann den Vorschubwiderstand beim Zerkleinern von Materialien verringern. Das Messer ist aus verschleißfestem und korrosionsbeständigem legiertem Stahl gefertigt. Die Klinge kann mehrmals verstellt werden, um die Nutzung der Klinge zu maximieren.

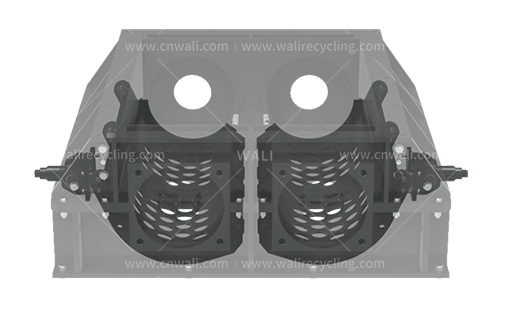

3.Double-opening ballistic screen

This screen can be opened on both sides by rotating the external opening and closing sleeve, with hydraulic rods pulling the screen apart, facilitating replacement and cleaning.

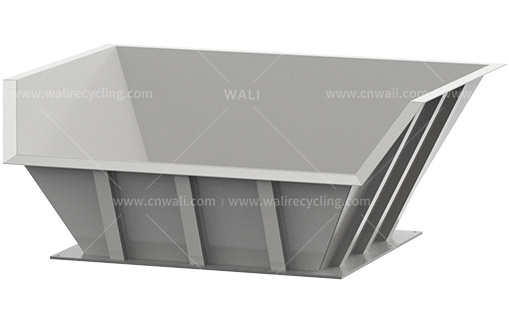

4.Wide feed inlet

The generously sized feed aperture is tailored to handle bulky materials, minimizing preprocessing requirements and facilitating later maintenance.

5.Overload protection

The shredder set safety current, when the material is difficult to tear, the instantaneous current will exceed the safety current, and the knife shaft will reverse. Thus protect the motor from being damaged.

6.SPS-Steuerungssystem

Die wichtigsten elektrischen Komponenten des Doppelwellen-Aktenvernichters sind vertrauenswürdige Marken wie Siemens und Schneider. Das SPS-Steuerungssystem kann eine Echtzeitüberwachung realisieren, abnormaler Alarm, Ferndiagnose und Datenanalyse.

Application

+Kunststoff: plastic bags, plastic films, plastic packaging, soft plastic containers, etc.

+Rubber: tire fragments, rubber hoses, rubber gloves, etc.

+Textilien: waste clothing, cloth, fiber products, carpets, etc.

+Papier: soft cardboard, paper bags,Vertrauliche Dokumente, paper packaging, etc.

+Verbundmaterialien: soft packaging materials (aluminum-plastic composite film), soft laminated materials, etc.

+Holz: pallets, garden waste, etc.

+Schaum: production waste, etc.

+Safety destruction products: imitations, defective products, expired products, etc.

Schlussfolgerung

The double shaft shredder plays an important role in waste treatment,Ressourcenrückgewinnung und Materialzerkleinerung mit hoher Effizienz, Stabilität und hohe Anpassungsfähigkeit.

Its unique double-roll design can quickly process a variety of materials, and at the same time, it can achieve particle size control by adjusting the roller gap to meet the needs of different industries.

Through reasonable use and regular maintenance, the double shaft shredder can provide enterprises with long-term and reliable crushing solutions, helping resource recovery and environmental protection.
