WLS Doppelwellen-Zerkleinerer

Throughput:0.5-3T/H
Discharge size:15-200Mm

Product introduction

Single Drive

WALI” S ” series double shaft shredder is medium and light load shredder. This series of shredders is equipped with a single motor reducer, which drives two sets of cutter shafts at the same time. “S” series shredders are compact and powerful, which adopts high strength cutter material, alloy cutter shaft, multiple protections, integrated reduction bearing. “S” series shredders have affordable price and excellent manufacturing even if in mass production. Each process such as heat treatment, hardness detection, structure flaw detection has strict requirements.

The highlights of the WLS-shredder

What Waste Can We Shred?

WALI engineers and designs shredding equipment tasked with solving some of the world’s toughest waste challenges.

The question is, what hasn’t gone through an WALI shredder?

Since 2004, we have built and manufactured solutions for most every material you can imagine.

Crushing effect

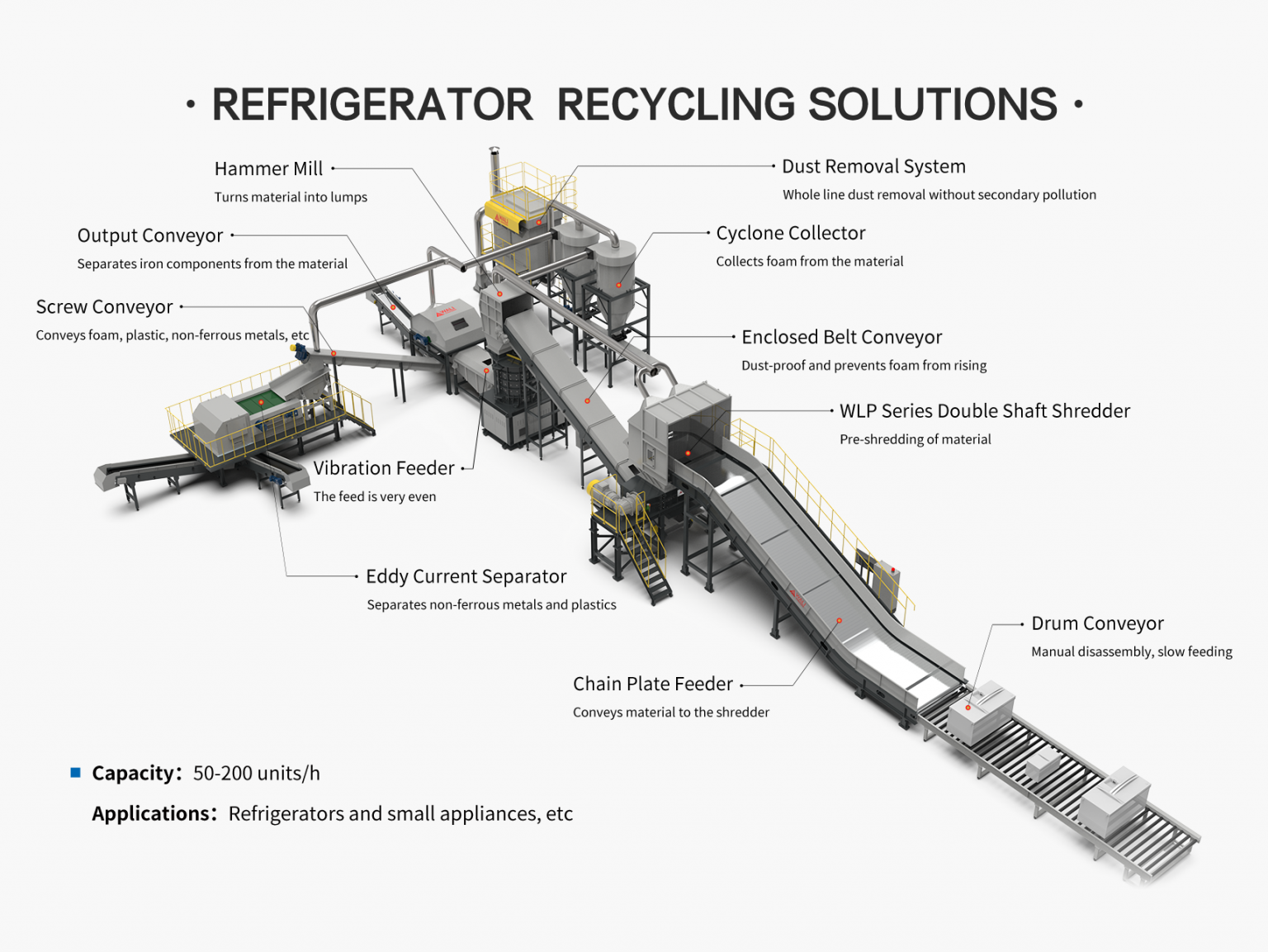

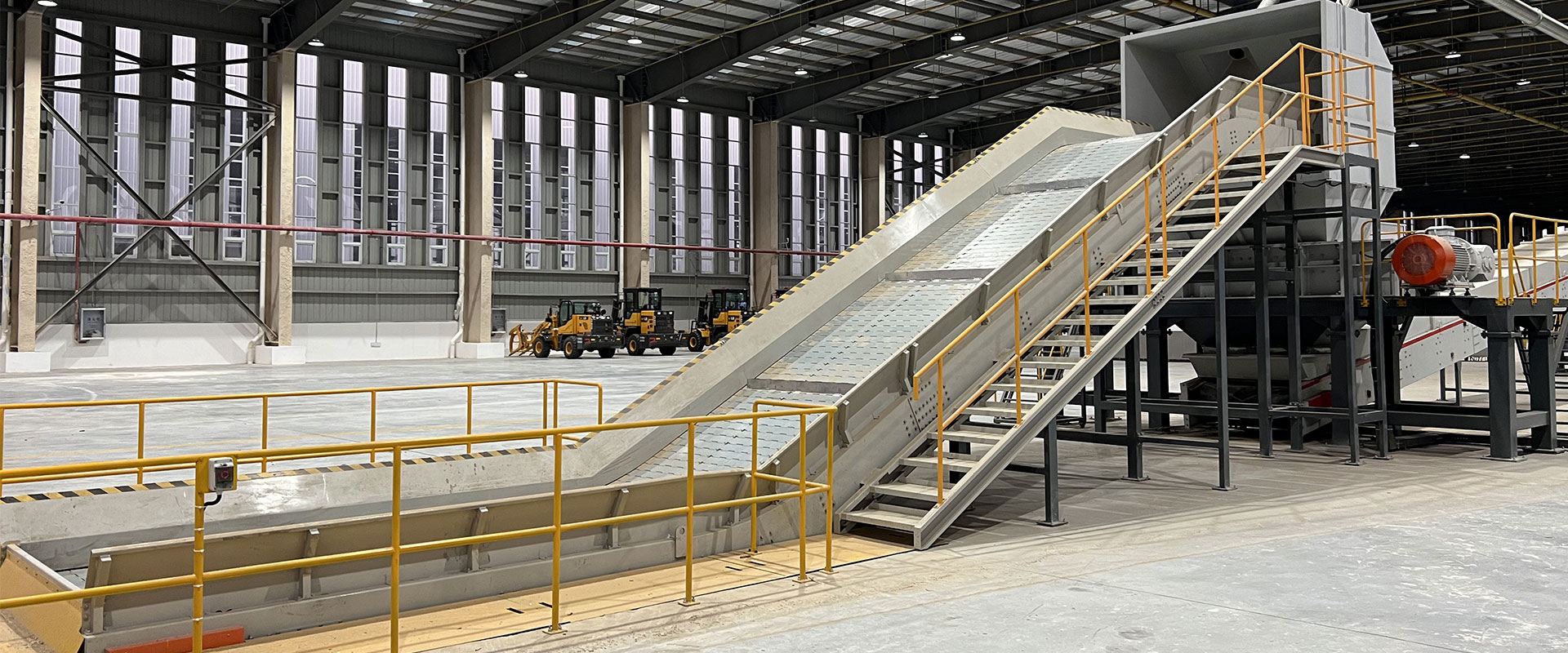

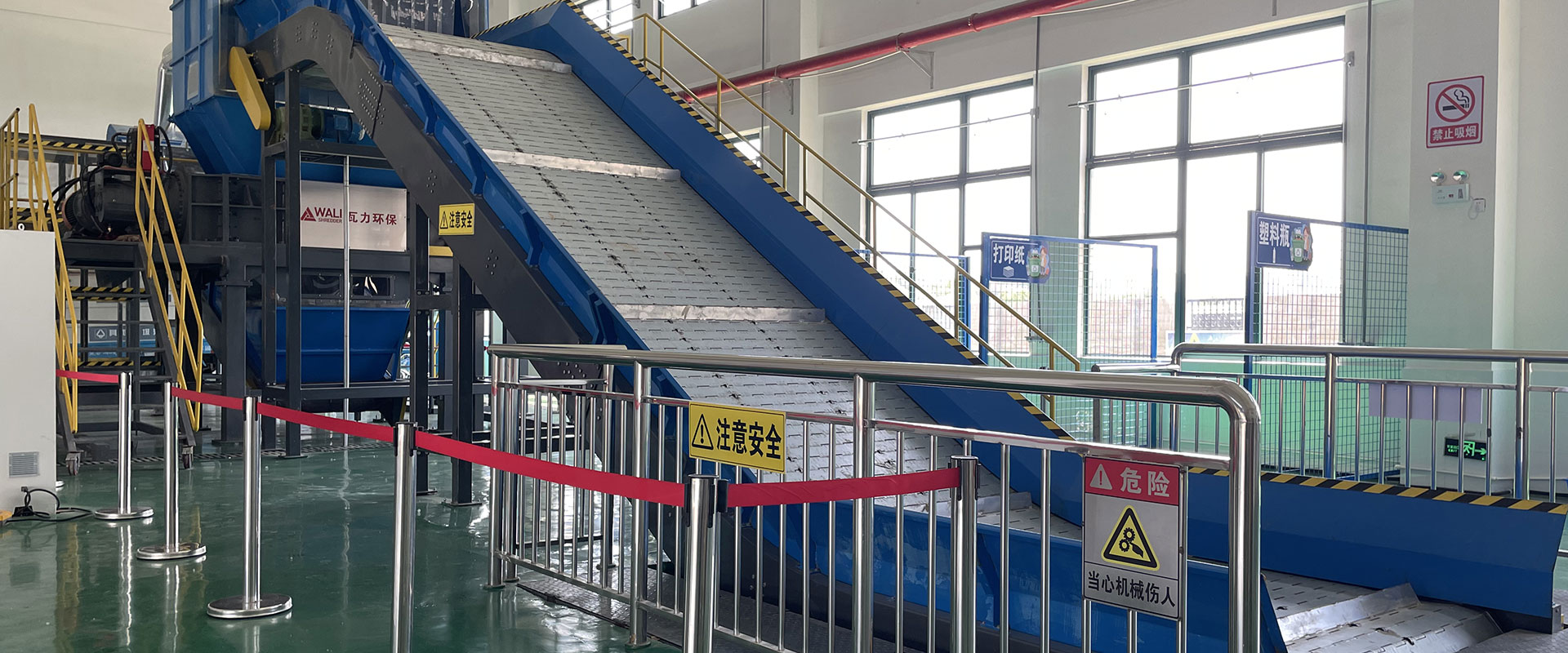

Crushing cases

Which model suits your needs?

Modell Equipment dimension Crushing chamber dimension Cutter diameter×thickness Cutter quantity Rotate speed Motor power Equipment N.W. Capacity
Unit L×W×H mm Mm Mm Pcs r/min Kw Kg Kg
S350 1320*800*1800 450*350 φ235*10/20 34/18 27 5.5/7.5 approx600 approx 300-800
S505 2240*1050*2020 550*500 φ280*20/30 30/20 18 15/18.5 approx1200 approx500-1500
Nr. S608 2500*1120*2230 640*800 φ300*20/30 42/26 15-20 22 approx1800 approx1000-2500
Nr. S710 2510*1865*2550 690*1000 φ330*30 34 15-20 30 approx2200 approx1500-3000
Der obige Aktenvernichter ist unsere Standardkonfiguration. Für unterschiedliche zu zerkleinernde Rohstoffe, Die Konfiguration kann anders sein. Bitte zögern Sie nicht, uns für detaillierte Informationen oder spezielle Anfragen zu kontaktieren.

Warum uns wählen?

Outlined below are some key reasons to choose us.

Our Manufacturing Plant

As a manufacturing and trading integrated company, we own our factory and strictly control every stage of the production process.

Häufig gestellte Fragen

Got Questions? We’ve Got Answers

We are a manufacturer. We have over 20 years of production experience since our establishment in 2004.

Located in Maanshan, Provinz Anhui, our company is only a 30-minute drive from Nanjing Lukou Airport. If you plan to visit us, we can arrange a special bus to pick you up from the airport.

Typically, we deliver goods within 30 Tage. If the machine is a non-standard customized product, it may take longer. Aber, the delivery time for such machines will not exceed 50 Tage.

We generally accept T/T and L/C payments, with a 30% Kaution und 70% Zahlung vor Lieferung. Aber, for special customers, we can offer better payment options.

Unsere Garantiezeit für konventionelle Maschinen beträgt ein Jahr, while for special non-standard machines, we may offer a 2-3 year warranty. Bitte bestätigen Sie die Garantiezeit vorab mit unserem Vertriebsteam. During the warranty period, we offer free replacement parts.

Ja, we accept OEM customization, which includes customizing the appearance, Farbe, Konfiguration, and more. Aber, please note that the price for customized products may be slightly higher. Please contact our business team for more details.

We accept a minimum quantity of one and can customize it via OEM to meet your specific needs.

We employ a variety of large equipment, such as tempering furnaces and shot blasting machines, um die Festigkeit und Stabilität des Rahmens zu gewährleisten. To guarantee machine accuracy, we use five-axis machining centers and floor boring and milling equipment. Additionally, our machine processing, assembly, and quality inspection follow standardized processes, ensuring product quality is controlled throughout the production process.

Aufgrund der Größe unserer Ausrüstung, we typically load them directly into containers and secure them using steel wires to prevent damage during transportation by sea. To ensure the machines remain intact, we take extra care to prevent them from hitting the inside of the container during the ship’s movement. Furthermore, we ensure that no other items are placed in the container with your ordered machine.

We offer remote assistance from our mechanical engineers to resolve minor issues that may arise during the use of our machines. This includes one-to-one guidance, with the option of sending text instructions or videos to help you solve the problem. Wenn Teile während der Garantiezeit ausgetauscht werden müssen, Wir stellen sie kostenlos zur Verfügung. Aber, you may also purchase the parts locally to save time. If remote guidance is insufficient to address more serious problems, we will arrange for engineers to provide on-site service. In regions where we have agents, we will contact them directly to provide service.

We welcome you to arrange for relevant personnel to come to our company for on-site study, and we will provide specialized one-to-one guidance. Aber, if it is inconvenient for you to visit our company, Wir können auch Remote-Schulungsoptionen anbieten.

Ocean freight charges are typically determined by the freight forwarder. You have the option of using our freight forwarder to arrange delivery or selecting your own freight forwarder.

Certainly. Along with machine delivery, we typically provide various manuals, Bedienungsanleitung, vorsichtsmaßnahmen, Schaltpläne, hydraulic diagrams, and other materials.

Bevor Sie eine Bestellung aufgeben, our sales team engages in detailed and in-depth communication with you to determine your specific requirements. We then recommend a machine configuration tailored to your needs, ensuring that you purchase the most suitable machine for your business. Our priority is not to recommend more expensive machines to generate sales, as expensive machines may not be the most suitable for your needs.
